LED podsvit sada LG HC490DGG celkem 8 pásků / DLED TOTAL ARRAY HC490DGG-SLTLB / LC49490134A + LC49490135A

LED podsvit sada LG HC490DGG celkem 8 pásků / DLED TOTAL ARRAY HC490DGG-SLTLB / LC49490134A + LC49490135A
LED podsvit LCD panelu 49" LG

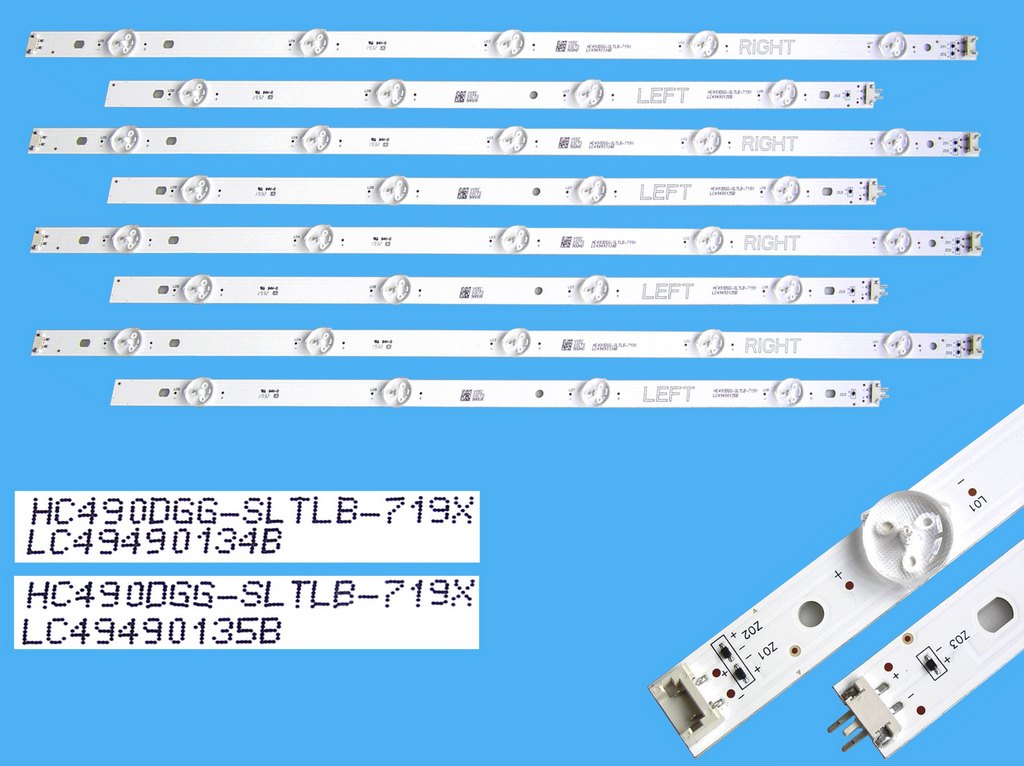

LED posvit pro LCD TV / LED backlight 360mA. kompletní sada podsvitu pro 49" panely LG. POZOR - tyto podsvity mají rozdílné provedení které se liší v počtu LED diod - 8 nebo 9 v jedné linii a ještě navíc provedení s 9 led mohou mít rozdílný konektor. Toto provedení má v jedné linii 9 LED diod a konektor odpovídá fotodokumentaci.
Obsahuje 4 kusy typu LGE-WICOP-49inch-UHD-REV06-A-150710 a 4 kusy typu LGE-WICOP-49inch-UHD-REV06-B-150710
nebo 4 kusy HC490DGG-SLTLB LC49490134A a 4 kusy HC490DGG-SLTLB LC49490135A
Jednotlivé typy mají rozdílnou délku a vždy se dva se zasouvají do sebe a tak vznikne jedna kompletní linie. Jednotlivé části jsou označeny A a B nebo Right a Left. Délka dílu A / Right je 555mm, délka dílu B / Left je 440mm. Celková délka jedné linie je 995mm

počet LED : 36 DLED ( 4 + 5 D-LED v každé části )
celková délka : celková délka jedné linie je 995mm ( 555mm + 440mm )
šířka pásku : 15mm
typ : LGE_WICOP_49inch_UHD_REV06_A_150710 + LGE_WICOP_49inch_UHD_REV06_B_150710, GAN011005A / GAN011006A
identické s : HC490DGG-SLTLB, LC49490134A + HC490DGG-SLTLB LC49490135A
panel : LC490DUYABHA4, NC490DGGAAFX1, NC490DGGABFX3, NC490DUEAAFX3, NC490DGGABFX1, LC490DUYABHA3, HC490DGGSLTL3, NC490DGGAAFX3, NC490DUEAAFX1, NC490DGGAAFXD, NC490DUEAAFX5, NC490DGGAAFX2, NC490DGGAAFXF, HC490DGGSLTL1, NC490DGGAAGX1, HC490DGGSLTL7, HC490DUNSLTL1, HC490DGGABWL3

Backlight, led pásky do TV LG 49LJ594V
Backlight, led pásky do TV LG 49LJ594VZA
Backlight, led pásky do TV LG 49LK5900PLA
Backlight, led pásky do TV LG 49LK5900PLAAEK
Backlight, led pásky do TV LG 49LT340C0ZB
Backlight, led pásky do TV LG 49LT340C0ZBAEU
Backlight, led pásky do TV LG 49LT341H0ZA
Backlight, led pásky do TV LG 49LT341H0ZAAEU
Backlight, led pásky do TV LG 49LU341H
Backlight, led pásky do TV LG 49LU341HAEU
Backlight, led pásky do TV LG 49LU341HZA
Backlight, led pásky do TV LG 49LV661HAEU
Backlight, led pásky do TV LG 49LV661HZA
Backlight, led pásky do TV LG 49UJ630V
Backlight, led pásky do TV LG 49UJ634VAEE
Backlight, led pásky do TV LG 49UJ634VAEU
Backlight, led pásky do TV LG 49UJ634VARU
Backlight, led pásky do TV LG 49UJ634VZD
Backlight, led pásky do TV LG 49UJ635VAEU
Backlight, led pásky do TV LG 49UK6200PLAAEU
Backlight, led pásky do TV LG 49UK6300PLB
Backlight, led pásky do TV LG 49UK6300PLBAEU
Backlight, led pásky do TV LG 49UK6400
Backlight, led pásky do TV LG 49UK6400PLFAEU
Backlight, led pásky do TV LG 49UK6470PLC
Backlight, led pásky do TV LG 49UK6470PLCAEN
Backlight, led pásky do TV LG 49UM7000PLA
Backlight, led pásky do TV LG 49UM71007LB
Backlight, led pásky do TV LG 49UM71007LBAEU
Backlight, led pásky do TV LG 49UM71007LBAEUD
Backlight, led pásky do TV LG 49UM7100PLB
Backlight, led pásky do TV LG 49UM7100PLBAEKD
Backlight, led pásky do TV LG 49UM7100PLBAEU
Backlight, led pásky do TV LG 49UM7100PLBAEUD
Backlight, led pásky do TV LG 49UM7390PLC
Backlight, led pásky do TV LG 49UM7390PLCAEK
Backlight, led pásky do TV LG 49UM7390PLCAEU
Backlight, led pásky do TV LG 49UM7400PLB
Backlight, led pásky do TV LG 49UN71003LB
Backlight, led pásky do TV LG 49UN711C0ZB
Backlight, led pásky do TV LG 49UN73003LA
Backlight, led pásky do TV LG 49UN73006LA
Backlight, led pásky do TV LG 49UN73903LE
Backlight, led pásky do TV LG 49UN73903LEAEU
Backlight, led pásky do TV LG 49UN73906LE
Backlight, led pásky do TV LG 49UN73906LEAEU
Backlight, led pásky do TV LG 49UN73906LEAEUD
Backlight, led pásky do TV LG 49UN74003LB
Backlight, led pásky do TV LG 49UN74006LB
Backlight, led pásky do TV LG 49UT640S0ZA
Backlight, led pásky do TV LG 49UT640S0ZAAEU
Backlight, led pásky do TV LG 49UT661H0ZA
Backlight, led pásky do TV LG 49UT661H0ZAAEK
Backlight, led pásky do TV LG 49UT661H0ZAAEU
Backlight, led pásky do TV LG 49UU640CAEK
Backlight, led pásky do TV LG 49UU640CAEU
Backlight, led pásky do TV LG 49UU640CZB
Backlight, led pásky do TV LG 49UU661H
Backlight, led pásky do TV LG 49UU661HAEK
Backlight, led pásky do TV LG 49UU661HZA
Backlight, led pásky do TV LG 49UV661HAEU
Backlight, led pásky do TV LG 49UV661HZB

používá 49UK6200PLA, 49UM7000PLA, 49UM7100PLB, 49UN71003LB, 49UM7050PLF,
