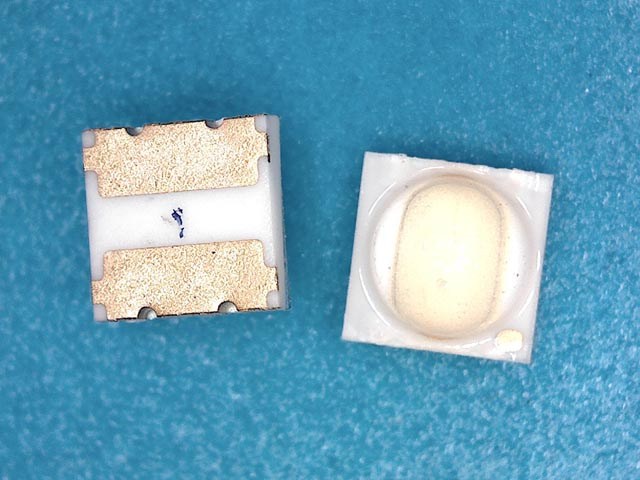

LED podsvit samostatná dioda 2828 0,8W 6V SHARP CORPORAT ION
Kód zboží:
4300031600
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
21,45 Kč
Cena s DPH:
25,95 Kč
Lze objednat jen 129 ks
MODEL NAME: GM2BB1ZF2CEM
Manufacturer: SHARP CORPORAT ION
Forward Current (IF): 120mA
Pulse Forward Curren t1 (IFp): 135mA
Reverse Current (IR): 10uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 826mW
Operatin Tgemperature (Topr): -30 - + 85 °C
Storage Temperature (Tstg): -40 - + 100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 6.02-6.88 V( 85mA)
Luminous Flux (LM): 33.11-43.89lm (85mA)
Luminous Intensity ( IV ) : cd (85mA)
Wavelength (nm) : nm 85mA
CIE : x=0.2430 y=0.2110 (85mA)
Color Correlated Temperature (CCT):
CRI : 80
Viewing angle : °
Lead Frame Type LED Package: 2.8×2.8×1.9 mm L×W×H d=mm
LED podsvit samostatná dioda 2828 0,8W 6V SHARP CORPORAT ION
2,8 x 2,8 x 1,9 mm
MODEL NAME: GM2BB1ZF2CEM
Manufacturer: SHARP CORPORAT ION
Forward Current (IF): 120mA
Pulse Forward Curren t1 (IFp): 135mA
Reverse Current (IR): 10uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 826mW
Operatin Tgemperature (Topr): -30 - + 85 °C
Storage Temperature (Tstg): -40 - + 100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 6.02-6.88 V( 85mA)
Luminous Flux (LM): 33.11-43.89lm (85mA)
Luminous Intensity ( IV ) : cd (85mA)
Wavelength (nm) : nm 85mA
CIE : x=0.2430 y=0.2110 (85mA)
Color Correlated Temperature (CCT):
CRI : 80
Viewing angle : °
Lead Frame Type LED Package: 2.8×2.8×1.9 mm L×W×H d=mm
