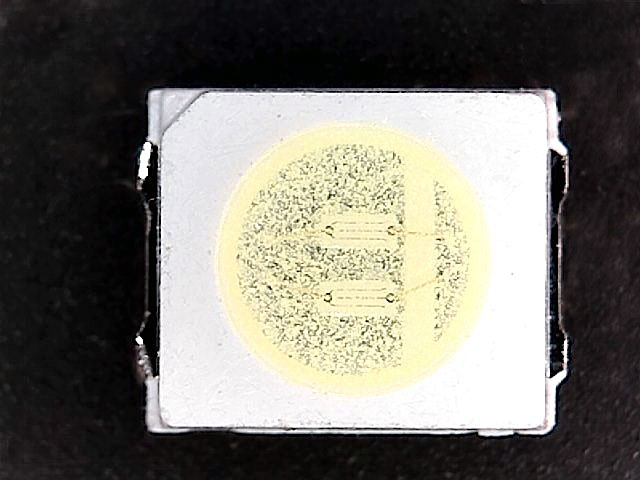

LED podsvit samostatná dioda 3528 / 2835 1,0W 3V
3,5 x 2,8 x 0,60 mm 1,0W 100Lm
Kód zboží:
4300030300
Výrobce:
LG
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
9,75 Kč
Cena s DPH:
11,8 Kč
Lze objednat jen 926 ks

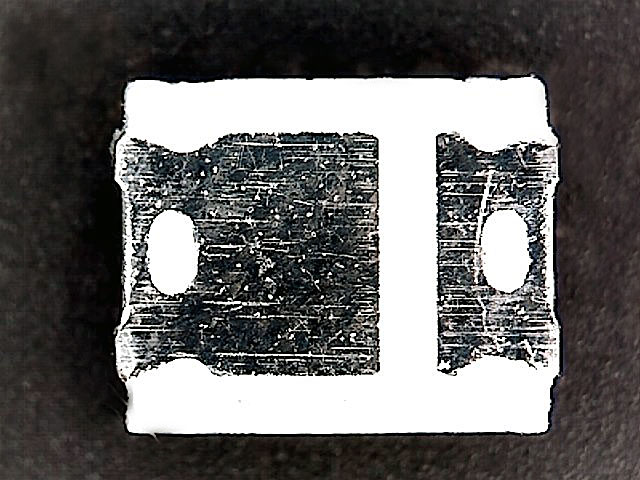

Menší kontakt je anoda
Forward Current (IF): 400mA
Pulse Forward Curren t1 (IFp): 650mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 0.8-1.2V (5mA)
Power Dissipation (PD): 1000mW
Operatin Tgemperature (Topr): -30 - +90 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 135°C
Forward Voltage (VF): 3.05-3.65V (250mA)
Luminous Flux (LM): 100 lm (20mA)
Luminous Intensity (IV): 23.5cd (250mA)
Color Correlated Temperature (CCT): 13000-17000K
CRI: 80°
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×2.8×0.60mm L×W×H d=2.0mm
