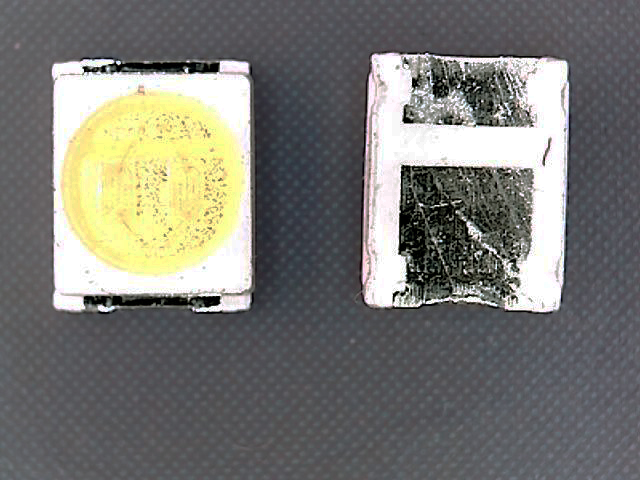

LED podsvit samostatná dioda 3528 / 2835 1,12W 3V 9000K
3,5 x 2,8 x 0,60 mm 100Lm
Kód zboží:
4300049900
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
9,1 Kč
Cena s DPH:
11,01 Kč
Lze objednat jen 68 ks
MODEL NAME: LED
Manufacturer:
Na větší plošce je Katoda
Forward Current (IF): 400mA
Pulse Forward Curren t1 (IFp): 450mA
Reverse Current (IR): 1uA
Operatin Tgemperature (Topr): -40 - + 100 ° C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Forward Voltage (VF): 3.2-3.8V (280mA)
Luminous Flux (LM): 88 lm (280mA)
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×2.8×0.80mm L×W×H d=2.0mm
