LED podsvit samostatná dioda 3535 / 3537 3V 1W UNI
3,5 x 3,5 x 0,6mm 1W 90Lm
Kód zboží:
4300030400
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
21,45 Kč
Cena s DPH:
25,95 Kč
Lze objednat jen 55 ks
MODEL NAME: MSL-638PZW-E43S LDLB
Manufacturer: UNI
Forward Current (IF): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): 1.25W
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +85 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 125°C
Forward Voltage (VF): 3.0-3.6V (300mA)
Luminous Flux (LM): 87.5-90lm (300mA)
Luminous Intensity ( IV ): cd (280mA)
Color Correlated Temperature (CCT):
CRI : °
Viewing angle : 120°

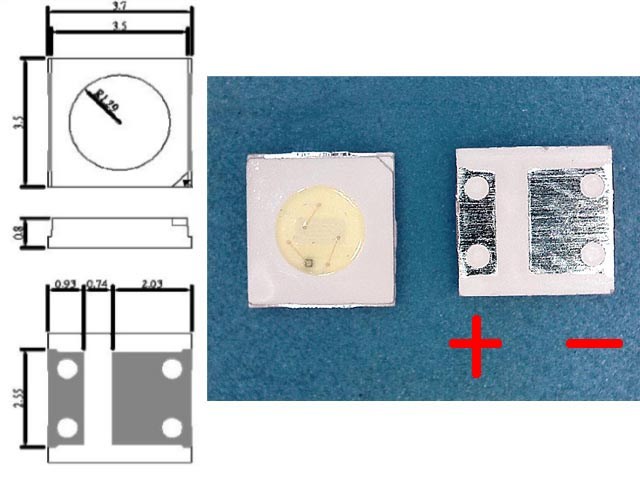

Lead Frame Type LED Package: 3.5×3.5×0.6mm L×W×H d=mm
LED podsvit samostatná dioda 3535 / 3537 3V 1W UNI
3,5 x 3,5 x 0,6mm 1W 90Lm
MODEL NAME: MSL-638PZW-E43S LDLB
Manufacturer: UNI
Forward Current (IF): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): 1.25W
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +85 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 125°C
Forward Voltage (VF): 3.0-3.6V (300mA)
Luminous Flux (LM): 87.5-90lm (300mA)
Luminous Intensity ( IV ): cd (280mA)
Color Correlated Temperature (CCT):
CRI : °
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×3.5×0.6mm L×W×H d=mm
LED podsvit samostatná dioda 3535 / 3537 3V 1W UNI
3,5 x 3,5 x 0,6mm 1W 90Lm
MODEL NAME: MSL-638PZW-E43S LDLB
Manufacturer: UNI
Forward Current (IF): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): 1.25W
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +85 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 125°C
Forward Voltage (VF): 3.0-3.6V (300mA)
Luminous Flux (LM): 87.5-90lm (300mA)
Luminous Intensity ( IV ): cd (280mA)
Color Correlated Temperature (CCT):
CRI : °
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×3.5×0.6mm L×W×H d=mm
