LED podsvit samostatná dioda 7030 6V LG Innotek
Kód zboží:
4300031400
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
22,75 Kč
Cena s DPH:
27,53 Kč
Lze objednat jen 214 ks
MODEL NAME: LEWWS73V15CZ00 7030 LED, SX-7030-LED-6W
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Curren t1 (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6 - 1.2V (5mA)
Power Dissipation (PD): 980mW
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 5.8-7.0V(93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity ( IV ): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing angle : 120°

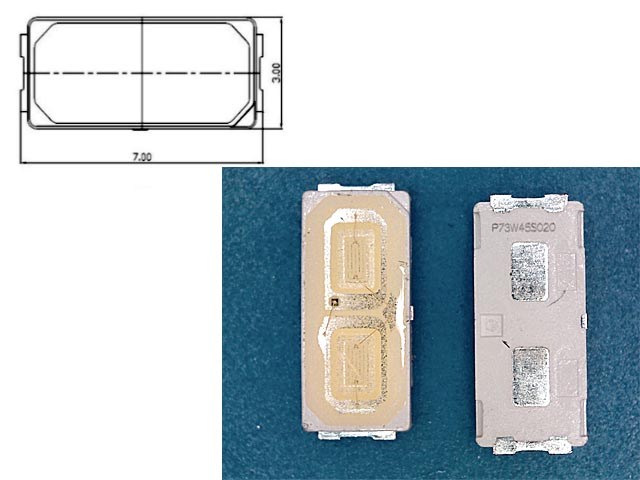

Lead Frame Type LED Package: 7.0×3.0×0.8 mm L×W×H d=6.0mm
LED podsvit samostatná dioda 7030 6V LG Innotek
7,0 x 3,0 x 0,8 mm 1W
MODEL NAME: LEWWS73V15CZ00 7030 LED, SX-7030-LED-6W
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Curren t1 (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6 - 1.2V (5mA)
Power Dissipation (PD): 980mW
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 5.8-7.0V(93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity ( IV ): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing angle : 120°
Lead Frame Type LED Package: 7.0×3.0×0.8 mm L×W×H d=6.0mm
LED podsvit samostatná dioda 7030 6V LG Innotek
7,0 x 3,0 x 0,8 mm 1W
MODEL NAME: LEWWS73V15CZ00 7030 LED, SX-7030-LED-6W
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Curren t1 (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6 - 1.2V (5mA)
Power Dissipation (PD): 980mW
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 5.8-7.0V(93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity ( IV ): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing angle : 120°
Lead Frame Type LED Package: 7.0×3.0×0.8 mm L×W×H d=6.0mm
