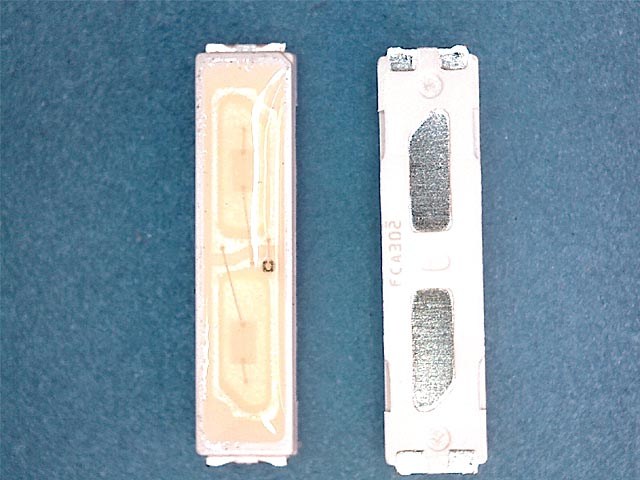

LED podsvit samostatná dioda 8520 3V Seoul

LED podsvit samostatná dioda 8520 3V Seoul
8,5 x 2,0 x 0,65 mm 0,7W 37LM

MODEL NAME: SBWAA240E 8520 LED

Manufacturer: SEOUL

Forward Current (IF): 180mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): 0.684W
Operatin Tgemperature (Topr): -30 +85C°
Storage Temperature (Tstg): -40 - +100 C°
Soldering Temperature (Tsld): Reflow Soldering: 260 C° for 10secs
Hand Soldering: 350C° for 3secs
Junctio Tnemperature (Tj): 110C°
Forward Voltage (VF): 2.8-3.6V (120mA)
Luminous Flux (CD): 11cd(120mA)
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
Lead Frame Type LED Package: 8.5×2.0×0.65 mm (L×W×H),d=mm
